槽式电缆桥架产品知识概述

发布日期：2014-10-11 00:00 来源：http://www.hhdlqj.com 点击：

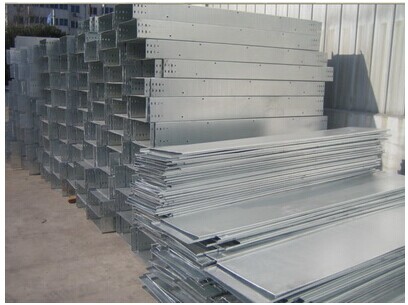

槽式电缆桥架 Channel Type Cable Tray

槽式电缆桥架是一种全封闭型电缆桥架，它最适用于敷设计算机电缆、通信电缆、热电偶电缆及其它高灵敏系统的控制电缆等对控制电缆的屏蔽干扰和重腐蚀环境中电缆的防护都有较好的效果。考虑槽式直通作屏蔽时，表面处理用镀锌。槽式电缆桥架的护罩随槽体配套供货、其他配件与梯级式、托盘式桥架通用。
用户如需槽式电缆桥架的其他品种规格可来图来函或面洽订货。
槽式直通表面处理分为喷塑、镀锌、喷漆三种，用喷塑时请用接地板。
Channel type cable tray of cnclosed structure. which is the best for layout of computer cables, communication cables, thermocouple cables and other high sensitivity instrument cables. It is favcurable for screening instrument cables and effective in protecting cables from corrosion. The surface of channel type straight cable tray is galvanized as it will function as a shield.
Covers will be supplied together with channel type cable trays. Other accessories are the same used fer cable trays of ladder or tray type. If you need channel type cable trays with other specifi-cations, please let us know by cable or letters or send or send us your drawings.>

槽式电缆桥架型号、规格：

型　号规　格宽mm高mm板　厚mm长度(L.mm)备注 XQJ-C-1A-0150x5050501.0mm2000mm-3000mm高度为50时每端各4个连接孔.螺栓规格M6x12 XQJ-C-1A-02100x501001.2mm2000mm-3000mm XQJ-C-1A-03150x501501.2mm2000mm-3000mm XQJ-C-1A-04200x502001.5mm2000mm-3000mm XQJ-C-1A-05300x503001.5mm2000mm-3000mm XQJ-C-1A-06100x1001001001.2mm2000mm-3000mm高度为100时每端各6个连接孔.螺栓规格M8x16 XQJ-C-1A-07150x1001501.2mm2000mm-3000mm XQJ-C-1A-08200x1002001.5mm2000mm-3000mm XQJ-C-1A-09300x1003001.5mm2000mm-3000mm XQJ-C-1A-10400x1004002.0mm2000mm-3000mm XQJ-C-1A-11500x1005002.0mm2000mm-3000mm XQJ-C-1A-12600x1006002.0mm2000mm-3000mm XQJ-C-1A-13200x1502001501.5mm2000mm-3000mm高度为150.200时每端各12个连接孔.螺栓规格M8x16 XQJ-C-1A-14300x1503001.5mm2000mm-3000mm XQJ-C-1A-15400x1504002.0mm2000mm-3000mm XQJ-C-1A-16500x1505002.0mm2000mm-3000mm XQJ-C-1A-17600x1506002.0mm2000mm-3000mm XQJ-C-1A-18400x2004002002.0mm2000mm-3000mm XQJ-C-1A-19500x2004002.0mm2000mm-3000mm XQJ-C-1A-20600x2005002.0mm2000mm-3000mm 材质：热镀锌板. .喷塑 .不锈钢材质：201、304(L)、316（L）
